Flagship Performance
SV5C — MIPI D-PHY & C-PHY Testing
Introspect's flagship combo MIPI physical-layer testers, pairing a generator and analyzer that operate at any data rate with per-lane stress-testing controls for receiver and transmitter characterization.

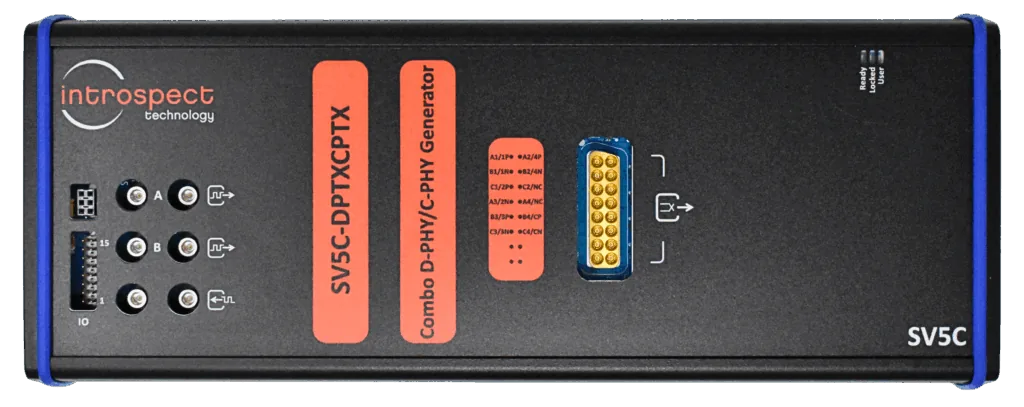

SV5C-DPTXCPTX Generator
D-PHY 12.5 Gbps · C-PHY 8 Gsps- Any-rate operation with per-lane HS voltage level and common-mode control
- Per-lane skew injection with <1 ps resolution and multi-source jitter injection
- Python-based Pinetree software with DSI-2/CSI-2 pattern synthesis for system-level test

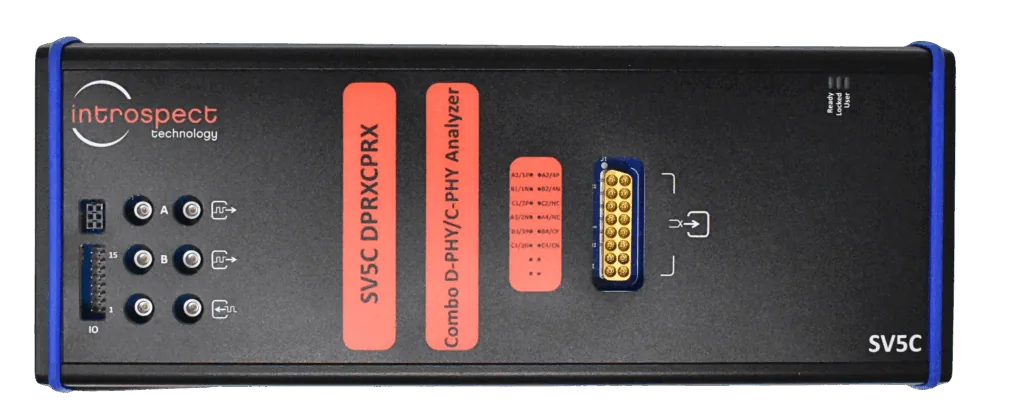

SV5C-DPRXCPRX Analyzer
D-PHY 8.7 Gbps · C-PHY 6.5 Gsps- 4 integrated signal/data analyzers with analog waveform capture on LP and HS data
- PHY-level burst-mode and continuous-mode analysis
- High-level CSI-2 and DSI-2 protocol capture with Python-based CTS compliance automation
Compact & Portable
SV3C — MIPI D-PHY & C-PHY Testing
Ultra-portable combo MIPI D-PHY and C-PHY generator and analyzer for design validation, debug, and manufacturing test of camera and display interfaces.

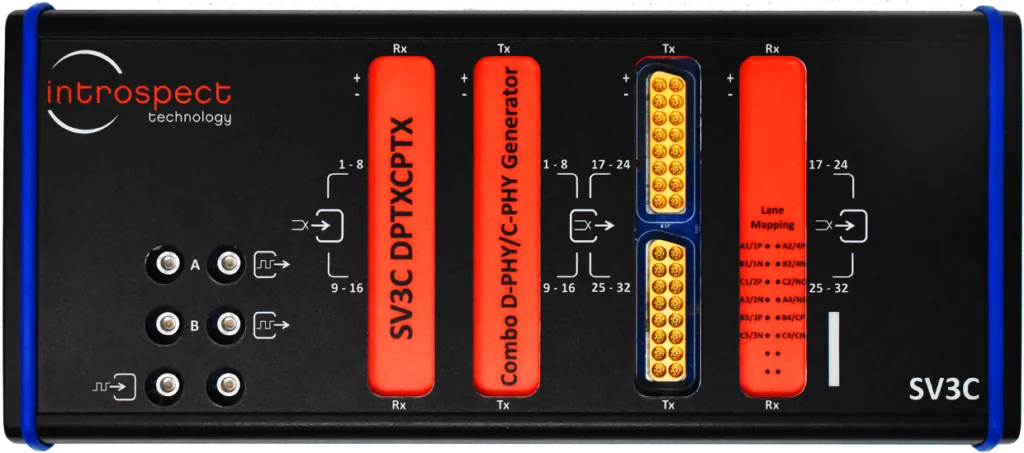

SV3C-DPTXCPTX Generator
D-PHY 6.5 Gbps · C-PHY 4.5 Gsps- Full-performance combo generator covering both SV3C-DPTX and SV3C-CPTX in one device
- Supports MIPI D-PHY v1.1/1.2/2.1 and C-PHY v1.0/1.1/1.2
- MIPI CSI-2 and DSI/DSI-2 pattern generation for camera and display validation

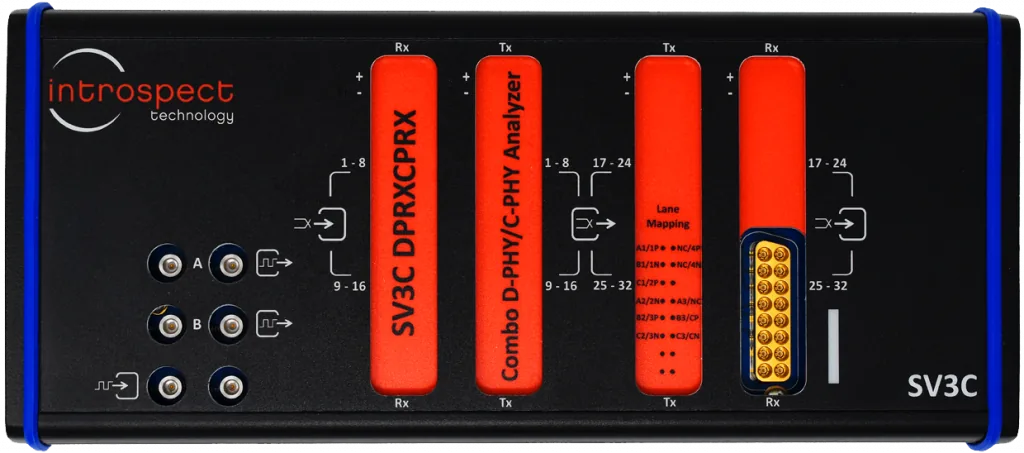

SV3C-DPRXCPRX Analyzer
D-PHY 3.1 Gbps · C-PHY 3.1 Gsps- Full-performance combo analyzer covering D-PHY and C-PHY receive analysis in one device
- Supports MIPI D-PHY v1.1/1.2/2.1 and C-PHY v1.0/1.1/1.2
- CSI-2 and DSI/DSI-2 protocol decode for manufacturing and system-level test
eDP, DisplayPort & SerDes
SV7C — Embedded DisplayPort & Personalized SerDes BERT
The SV7C platform covers Embedded DisplayPort and DisplayPort generation and analysis up to UHBR rates, plus a 16-lane phase-aligned parallel BERT for general-purpose SerDes signal integrity work.

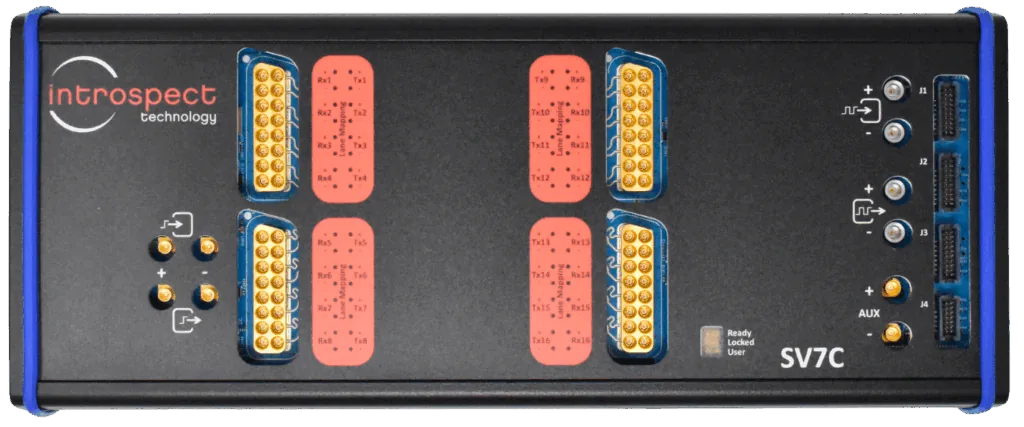

SV7C-eDP Generator
eDP v2.0 / DP v2.1 · up to 26 Gbps- HBR and UHBR generation across up to 4 lanes plus AUX, with 8 GB of pattern memory
- Per-lane voltage, common-mode, jitter, and skew stress-testing controls
- Full video frame generation via Python-scriptable Introspect ESP software
SV7C-eDP Analyzer
eDP v2.0 / DP v2.1 · up to 26 Gbps- Configurable ML1–ML4 lane capture plus AUX channel at up to 26 Gbps
- Operates as a DisplayPort sink for source testing or as a live bus-traffic probe
- Extensive triggering, consecutive frame capture, and full video frame extraction in Pinetree
SV7C Personalized SerDes Tester
28 Gbps · 16 Lanes BERT- Phase-aligned parallel BERT with 16 independent lanes and 16 signal/data analyzers
- Per-lane voltage, skew, and noise injection with independent TX/RX equalization
- Source-synchronous bus testing with auto-calibrated phase delays
Multi-Protocol Platform

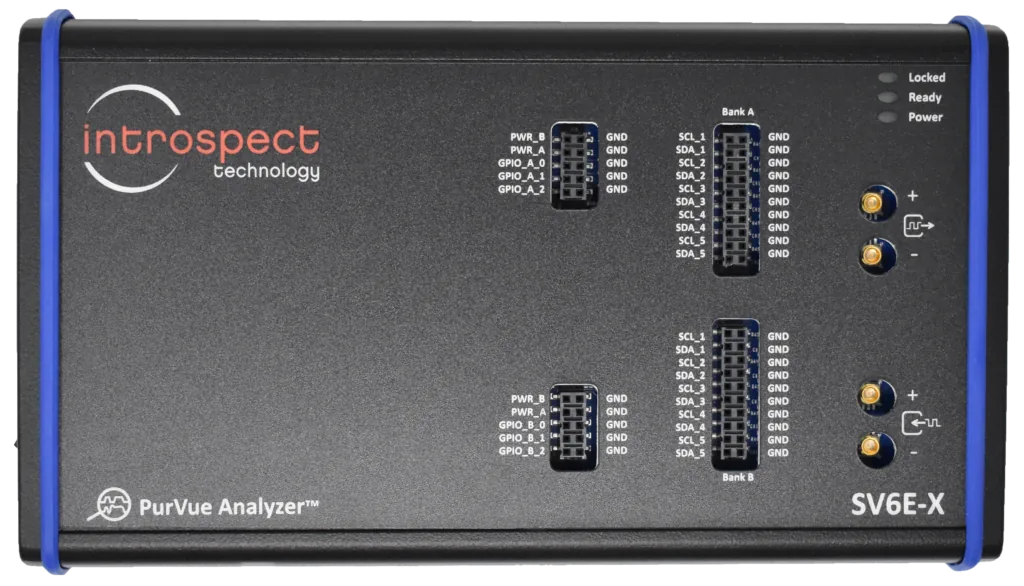

SV6E-X — I3C & SoundWire Testing
One hardware platform, two personalities: the SV6E-X unifies a protocol exerciser, protocol analyzer, and real-time oscilloscope for MIPI I3C and MIPI SoundWire/SWI3S validation.
SV6E-X for I3C
I3C v1.0/1.2 · 200 MHz I/O- Unified exerciser, analyzer, and real-time oscilloscope — paired with the PurVue Analyzer for embedded scope debug
- Same hardware also supports SoundWire, I2C, SPI, and RFFE
- Programmable voltage levels and I/O timing for stress testing and characterization
SV6E-X for SoundWire & SWI3S
SoundWire & SWI3S · 26 Mbps DDR- Three-in-one: protocol exerciser (host/device emulation), analyzer, and real-time oscilloscope
- 2 banks of 8 channels with 1 GB onboard memory
- Automated Pinetree scripting for debug, verification, and production screening
ATE-on-Bench
M-Series — High-Speed Memory Interface Test
ATE-grade functional test and live protocol analysis for DDR, LPDDR, and GDDR memory interfaces, brought to the lab bench.

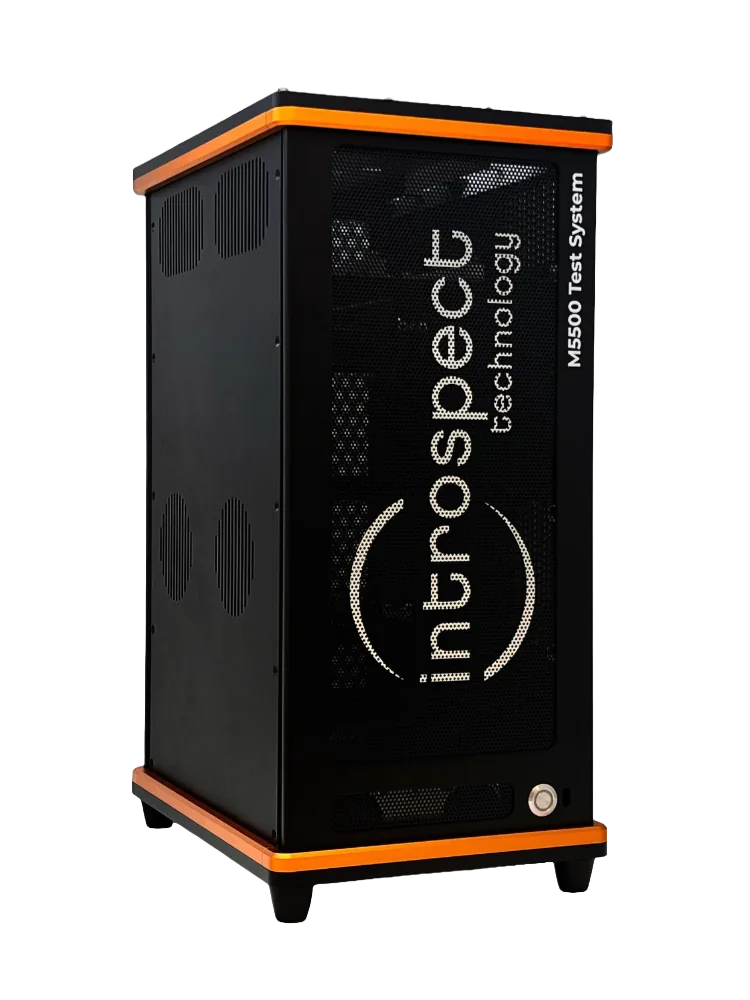

M5504 High-Speed Digital Tester
48 Channels · 28.3 Gbps NRZ- ATE-on-bench: replaces production ATE and multi-instrument setups for memory validation
- Turnkey virtual memory controller software automates interface training
- Configurable as benchtop ATE with DIBs or as a cable-connected parallel BERT

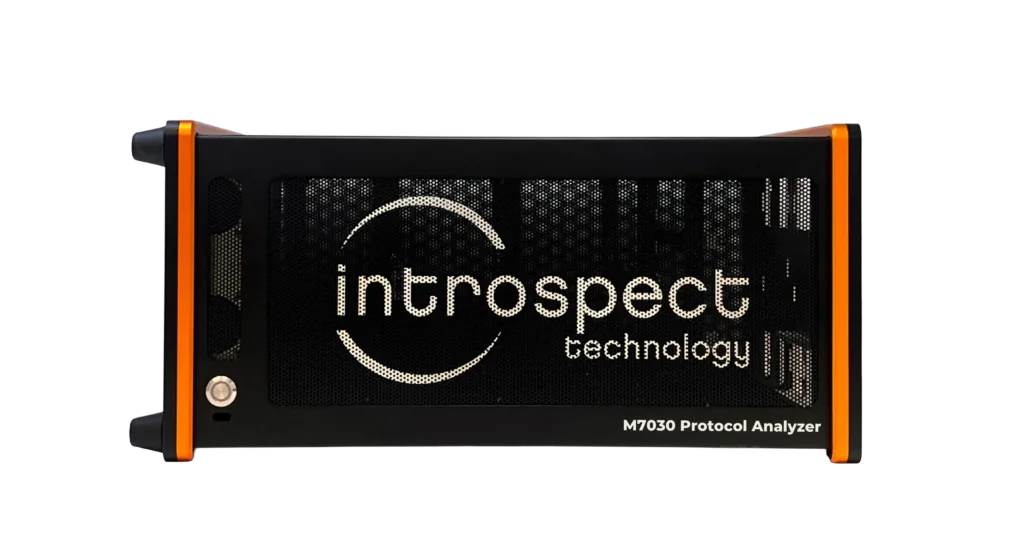

M7030 Protocol Analyzer
80 GS/s · up to 36 Channels- Non-intrusive live probing of active DDR, LPDDR, or GDDR links
- Automated decode of waveforms into DDR commands with timing and statistical analysis
- Continuous capture through clock transitions, stops, and frequency changes without resync
Signal Access
Probing Solutions
Active probes and remote sampling heads for accessing sensitive, low-voltage, high-speed signals without disturbing the circuit under test.

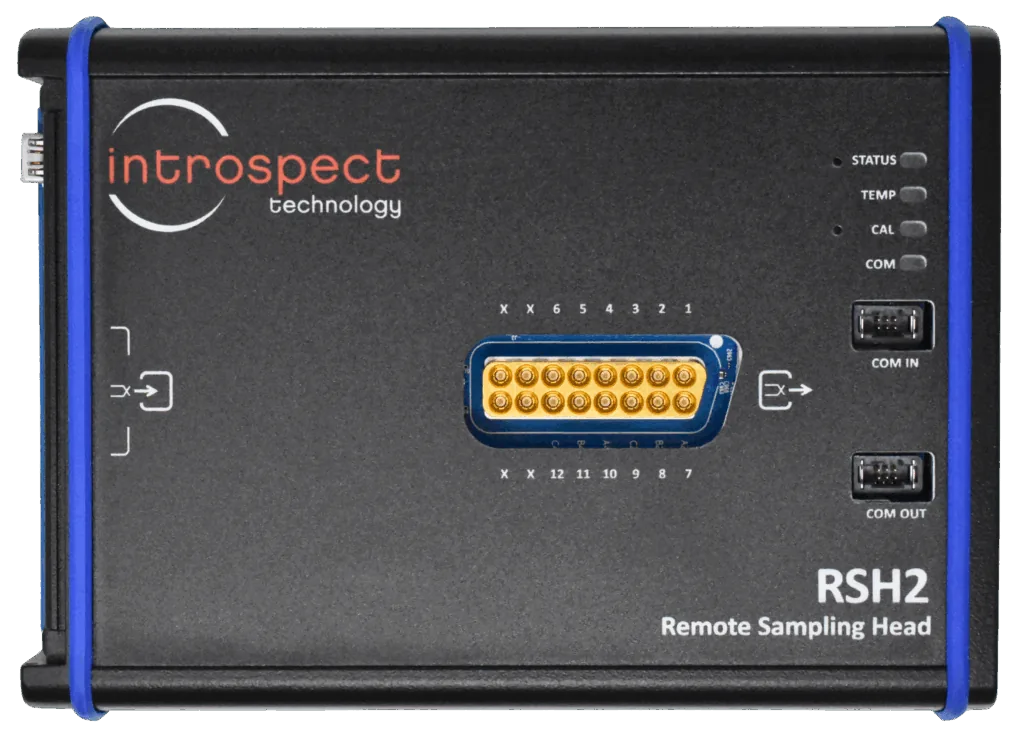

RSH2 Remote Sampling Head
12 Active Probes- High input impedance active probing minimizes loading on sensitive low-voltage protocols
- Fully shielded active components for clean signal integrity in noisy environments
- Standard 50 Ω coaxial outputs work with any brand of oscilloscope or analyzer
PV2 Universal Active Probe
8 GHz Bandwidth- Solder-in tips for accessing difficult-to-reach signals in densely integrated systems
- Non-proprietary interface connects to any oscilloscope, logic analyzer, or spectrum analyzer
- Supports MIPI, LPDDR5, automotive Ethernet, DisplayPort, and similar low-voltage standards
